Rail Profile Measurement Gauge Rail Measuring Tools

Product Description

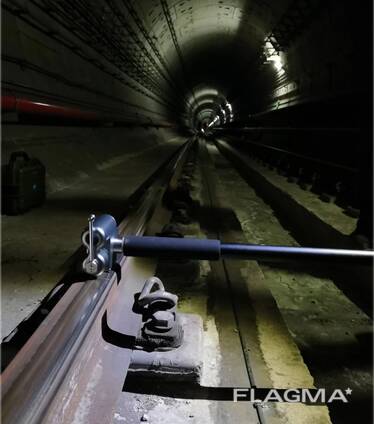

It is a high precision, lightweight and portable tool for performing fast and reliable cross-sectional rail profile measurements to monitor and analyze the wear of rails. It is available for all type of rails, including grooved rails. Magnetically attached to the top of the railhead, the rail profile is measured in one single measurement in less than 5 seconds.
Each one is delivered with the innovative and user-friendly software package. It includes the app for Android for easy data collection in the field and the vast software package for basic and advanced data studies and analysis. It can suit any user’s needs for easy building of measurement schemes, batch processing, references, creating templates and macros, live alarms, trend analysis, wear, grinding, evaluation, equivalent conicity and much more.
Vertical, horizontal and angled wear are displayed instantly after each measurement in real time view. Numerous additional calculations and alignments are included in the powerful Envision software for basic to advanced data handling, analyzing and reporting.

Place of Origin China
Purpose for replace/repair
Condition New
Dimensions (L x W x H) (mm) 135mmx45mmx100mm
Product name Rail Profile Measurement System
FUNCTION rail section profile
horizontal resolution 500-800points/section
accuracy ±10μm
repeatability rms<5μm
acquisition points >10000points/rail head
measuring speed <5s
srocessing speed <2s
file size 10-30kb/profile
net weight 1.15KG
Packaging and delivery
Selling Units: Single item
Single package size: 45.5X35X18.5 cm
Single gross weight: 5.540 kg
