¥ 1/piece
Weng Danny
sales manager
Description
Description
Compliant to USB specification Revision 2.0
Support 4/3/2 downstream ports by I/O pin configuration
Upstream port supports both high-speed(HS) and full-speed(FS) traffic
Downstream ports supports HS, FS, and low-speed(LS) traffic
On-chip 8-bit micro-processor
RISC-like architecture
USB optimized instruction set
Single Transaction Translator(STT)
Single TT shares the same TT control logics for all downstream port device, This is the most cost effective solution for TT. Multiple TT provides individual TT control logics for each downstream port.
This is a performance better choice for USB 2.0 hub
Integrate USB 2.0 transceiver
Each downstream port supports two-color status indicator, with automatic and manual modes comliant to USB specification Revision 2.0
Embed serial resister for USB signals
Support both individual and gang modes of power management and over-current detection for downstream ports
Conform to bus power requirement
Automatic switching between self-powered and bus-powered modes
Support compound-device(non-removable in downstream ports) by I/O pin configuration
Configurable non-removable device support
Embeds 5V to 3.3V regulator
Improve output drivers with slew-rate control for EMI reduction
Internal power-fail detection for ESD recovery
Applications:
Characteristics
Product code
8845
The owner of the ad has the most up-to-date information.
Still looking for:
Similar ads
Wholesale price
$0.10-0.20/pc
A RISC like processor is embedded to operate the internal control/status registers and respond to the commands of the USB host. The HS8845 is designed to minimize the cost of peripheral components and BOMs, and optimize the pin layout to support single-sided and no jumper layout, effectively...
16 Nov 2022
3
Price
¥ 1.10/pc
Compliant to USB specification Revision 2.0
Support 4/3/2 donwnstream ports by I/O pin configuration
Upstream port supports both high-speed(HS) and full-speed(FS) traffic
Downstream ports support HS, FS, and low-speed (LS ) traffic
18 Jun
2
Wholesale price
$0.10-0.20/pc
Compliant to USB specification Revision 2.0
Support 4/3/2 donwnstream ports by I/O pin configuration
Upstream port supports both high-speed(HS) and full-speed(FS) traffic
Downstream ports support HS, FS, and low-speed (LS ) traffic
16 Nov 2022
Weng Danny
sales manager
Other company ads
Price
¥ 1/pc
Shenzhen Duoyi technology, LLC, CN
Description
Compliant to USB specification Revision 2.0
Support 4/3/2 downstream ports by I/O pin configuration
Upstream port supports both...
Price
¥ 1/pc
Shenzhen Duoyi technology, LLC, CN
Supports standard 2D 5Key or 3D 5Key mice;
Supports multiple sensors: KA8, V108, MX8650A;
Supports 6 customizable button functions;
Support mouse scroll...
Price
¥ 1/pc
Shenzhen Duoyi technology, LLC, CN
Supports standard 2D 5Key or 3D 5Key mice;
Supports multiple sensors: KA8, V108, MX8650A;
Supports 6 customizable button functions;
Support mouse scroll...
Price
¥ 1/pc
Shenzhen Duoyi technology, LLC, CN
Supports standard 2D 5Key or 3D 5Key mice;
Supports multiple sensors: KA8, V108, MX8650A;
Supports 6 customizable button functions;
Support mouse scroll...
Price
¥ 1/pc
Shenzhen Duoyi technology, LLC, CN
Supports standard 2D 5Key or 3D 5Key mice;
Supports multiple sensors: KA8, V108, MX8650A;
Supports 6 customizable button functions;
Support mouse scroll...
See more ads in the category Electronic components, other
Contacts
Representative
Weng Danny
sales manager
Contacts
Say, that you found an ad on Flagma
Safety rules: Do not agree to prepayment if you are not sure about the reliability of the user.
Write a message
Shenzhen Duoyi technology, LLC
Weng Danny, sales manager

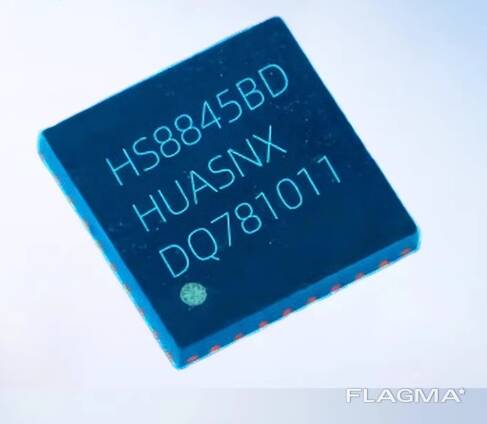

USB 2.0 HUB IC HS8845BD QFN16
