VHF UHF Band 200 to3600MHz RF Dual Junction Drop in Isolator high isolation TAB

Add to Favourites

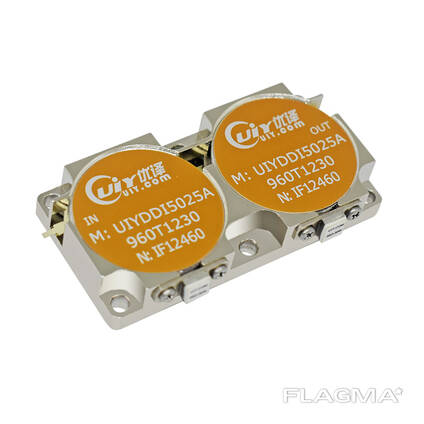

VHF UHF Band 200 to3600MHz RF Dual Junction Drop in Isolator high isolation TAB
1 / 4
VHF UHF Band 200 to3600MHz RF Dual Junction Drop in Isolator high isolation TAB - photo 1 VHF UHF Band 200 to3600MHz RF Dual Junction Drop in Isolator high isolation TAB - photo 2 VHF UHF Band 200 to3600MHz RF Dual Junction Drop in Isolator high isolation TAB - photo 3 VHF UHF Band 200 to3600MHz RF Dual Junction Drop in Isolator high isolation TAB - photo 4
Posted: 17 June 2025, 15:20 ID: 48011
$35/piece
UIY Technology Inc., LLC Shenzhen, CN
Flagma member since September 28, 2021
More ads – 45
Hu Kelly
shenzhen
Call Write

Description

Model NO.: UIYDDI5025A
Type: VHF UHF RF Dual Junction Isolator
Brand Name: UIY
Freq. Range (MHz): 200 to 3600MHz
Bandwidth: 30%
Insertion Loss Max(dB): 0.5
Isolation Min(dB): 50
VSWR Max: 1.15
Power:200W/30W
Connector Type: TAB
Temperature: -40 ~ +85ºC
Certification: ISO9001, ISO14001, RoHS
Warranty: 1 year

Applications:

Radar System
Telecom Infrastructure
Microwave Radio Systems
Communication Systems
Wireless Radio Systems
R&D labs
Public Address System Radio Transmitter
Biomedical Instrumentation
4G LTE 5G NR Mobile Communciations

Characteristics

Product code
UIYDDI5025A
